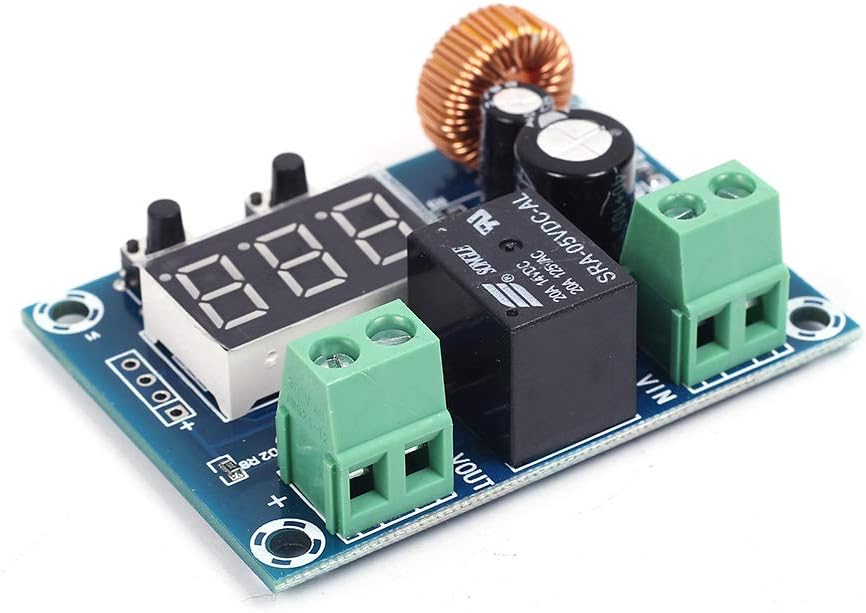

4pcs 12V-36V DC Voltage Protection Module Over Discharge Protection
US$6.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by quictools.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$6.80
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by quictools.com
Free 30-day returns Details
Product details
| Management number | 246985023 | Release Date | 2026/08/16 | List Price | US$6.80 | Model Number | 246985023 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 🌟Board Size: 57 X 42 X 19mm/2.24 X 1.65 X 0.75inch(L*W*H), Input Voltage Range: DC12-36V, Control Accuracy: 0.1V, Power Consumption: <1.5W, Instantaneous maximum current before circuit breaker trip: 20A.
- 🌟Note:Due to the limitation of the size of the PCB board, the relay size of this module is mini and the circuit lines are very thin. The current should not be too large during actual use. If the current exceeds 8A, the relay contacts may be blown and cannot be used normally.The maximum current is 10A when the voltage is below 12V, and less than 8A when the voltage exceeds 12V
- 🌟Programmable battery low voltage disconnect switch for DC12-36V lead acid battery and lithium ion battery. It's a protection switch module, not included batteries itself.Compatible Battery: lead acid, lithium ion battery, solar panel battery.Not suitable for battery packs.
- 🌟On-board momentary push button to set the low voltage disconnect parameter and 3 digit red LED display the parameter easy to operation.When the battery voltage reach the setting values, the module will disconnect load automatically to aviod the battery from over discharging to prolong the battery lifetime. (Note:The relay does not contain a power cut-off switch,remember to cut off the power supply after disconnection, otherwise the module will continue to use the battery until the voltage is 0.)
- 🌟Reset:When the power is off, press and hold the two buttons at the same time, and then power on. At this time, the screen displays "888", indicating that the factory settings are restored.The factory-set protection value: 12V, difference value: 2V.Difference Value"is the value between the battery voltage to disconnect and the battery voltage to reconnect.
- 🌟Display is accurate, the switch module is quickly to open and close when near minimum voltage; Settings is stored non-volatile, it can keep set when power off
- 🌟Package Included:4x Protection Module.
| UPC | 768484434345 |
|---|---|
| ASIN | B09WQX4GCP |
| Model | 4 |
| Brand Name | Onyehn |
| Unit Count | 4 Count |
| Item Weight | 120 g |
| Part Number | 4 |
| Display Type | LED |
| Manufacturer | Onyehn |
| Material Type | Plastic |
| Number of Items | 4 |
| Number of Packs | 4 |
| Item Dimensions L x W x H | 2.24"L x 1.65"W x 0.75"H |
