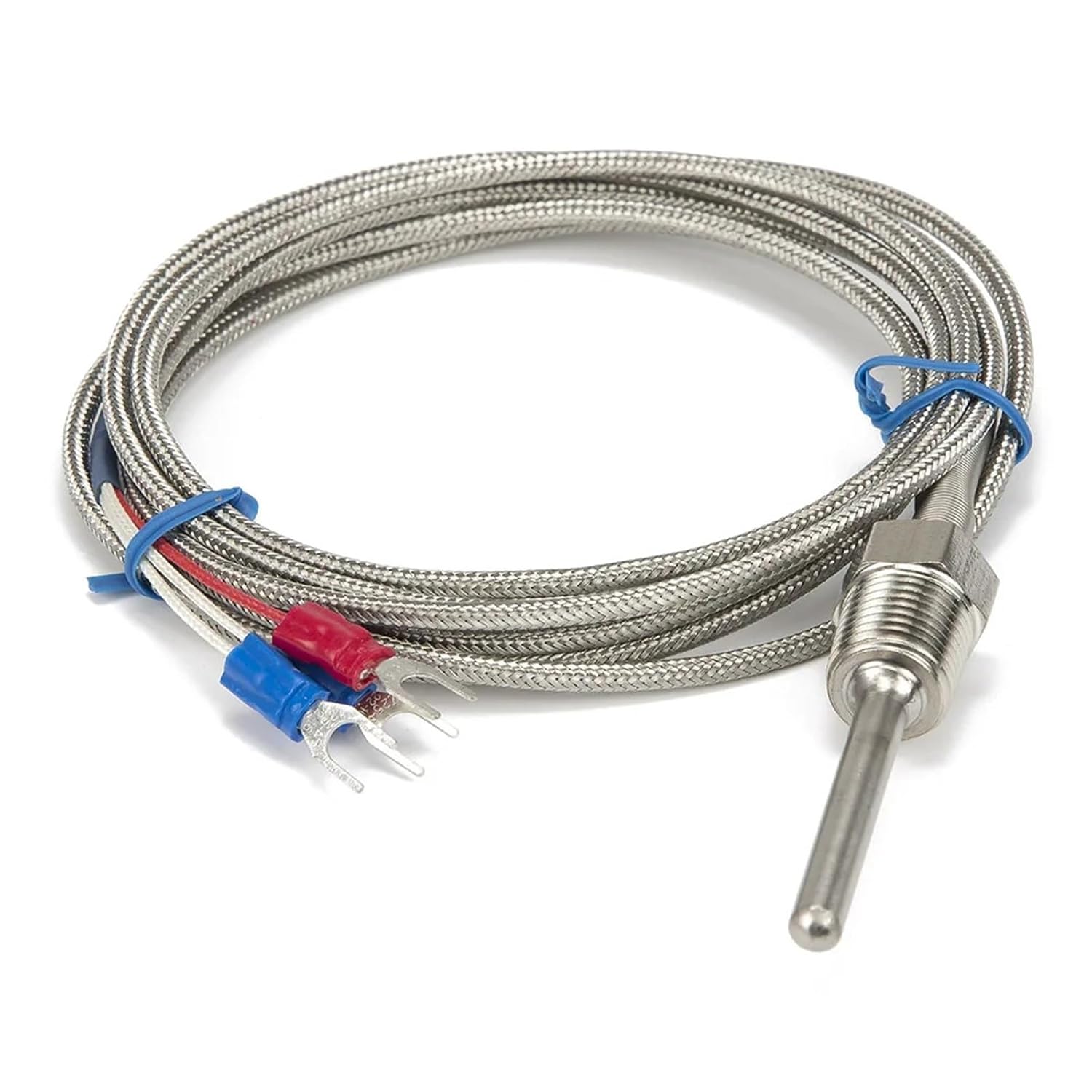

FTARP09 PT100 Type 2m Metal Braided Cable 50mm Probe Head RTD Temperature Sensor(PT3 4)

K, E, J: ±0.4%|t|; PT100: 2B grade (Default): ±(0.6°C+1%|t|); B grade: ±(0.3°C+0.5%|t|); A grade: ±(0.15°C+0.2%|t|)Work typeThermocouple: UngroundedThread sizePT1/8", PT1/4", PT3/8", PT1/2", PT3/4", M6*1, M8*1.25, M8*1.5, M10*1, M10*1.25, M10*1.5, M12*1, M12*1.5, M14*1.5, M16*1.5, M20*1.5, M27*2; Can make NPT, MOQ is 20pcsCurrent: PT1/4"; PT1/8"; PT3/8"; PT1/2"; PT3/4"; M6*1; M8*1.25; M10*1; M10*1.5; M12*1; M12*1.5 (Not in one product, need select one)Probe material201 stainless steel, the connection between probe and thread are welded, waterproofProbe diameterUsual: M6: 4mm; PT1/4", M8, M10, M12, PT1/2", M16, M20, M27: 5mm; M27 316L: 10mm; 316L Silica gel cable: 6mm.Probe lengthStandard is 50mm, can make 30, 100, 150mm (Include screw thread length). If not include screw thread, 1-2m min.Current: 50mmCable materialHigh density metal screening cable, PTFE silver plated copper cable,Silica gel cableCable lengthStandard is 1mThermal response time<;5s; RTD: 8sInsulating resistance20M min==========Type : PT100Theory : Temperature SensorDisplay Type : AnalogOrigin : Mainland ChinaMax Measuring Temperature : 120°C & AboveStyle : Standing StationUse : IndustrialCable length : 2mDisplay Size : 2.0 - 3.9 Inches

• Probe diameter Usual: M6: 4mm; PT1/4", M8, M10, M12, PT1/2", M16, M20, M27: 5mm; M27 316L: 10mm; 316L Silica gel cable: 6mm.
• Probe length
• Standard is 50mm, can make 30, 100, 150mm (Include screw thread length). If not include screw thread, 1-2m min.
• Current: 50mm
• Cable material High density metal screening cable, PTFE silver plated copper cable,Silica gel cable
