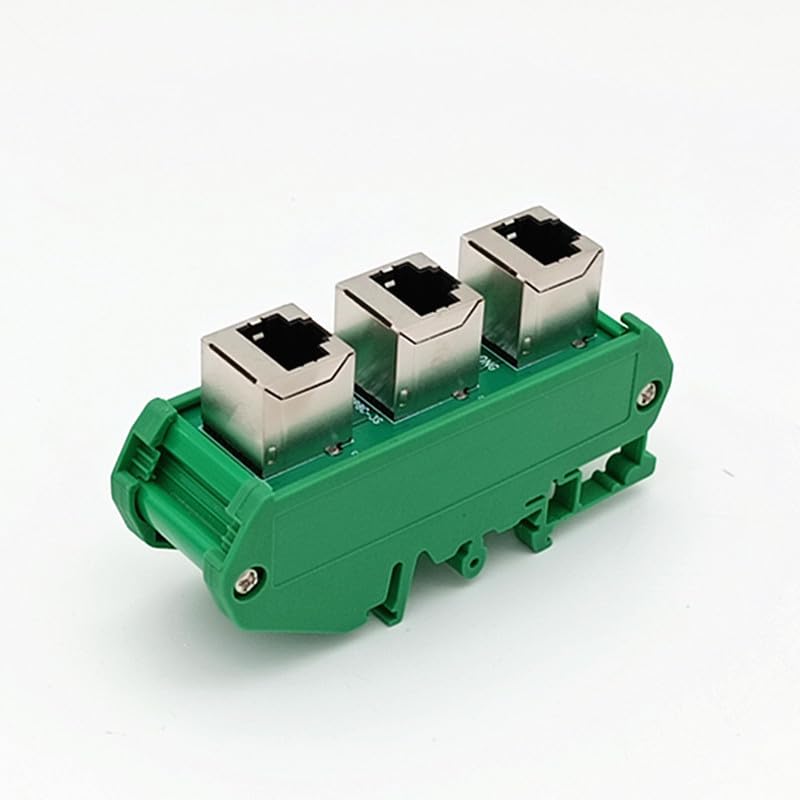

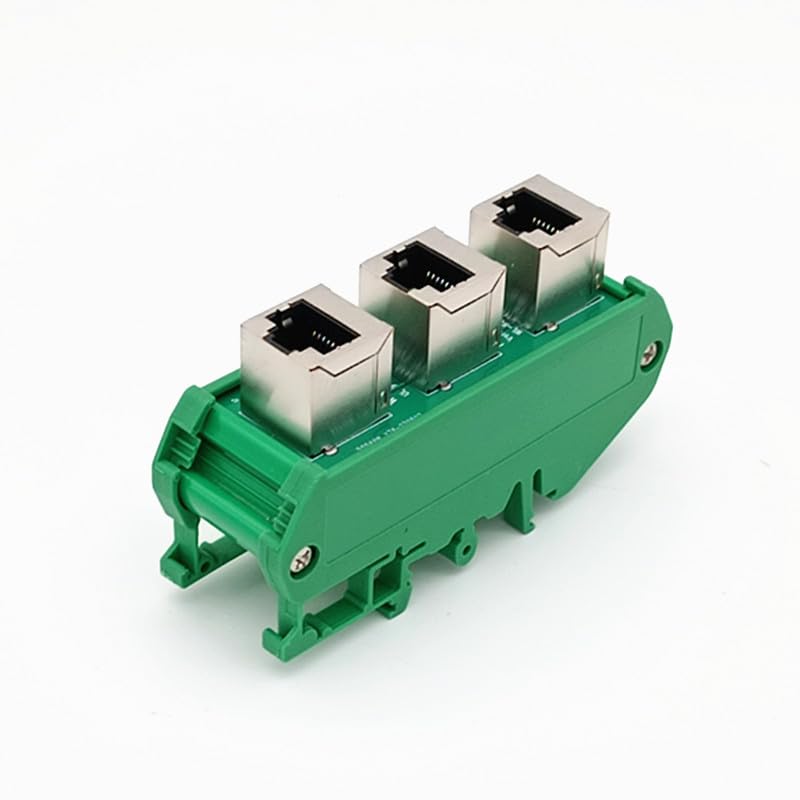

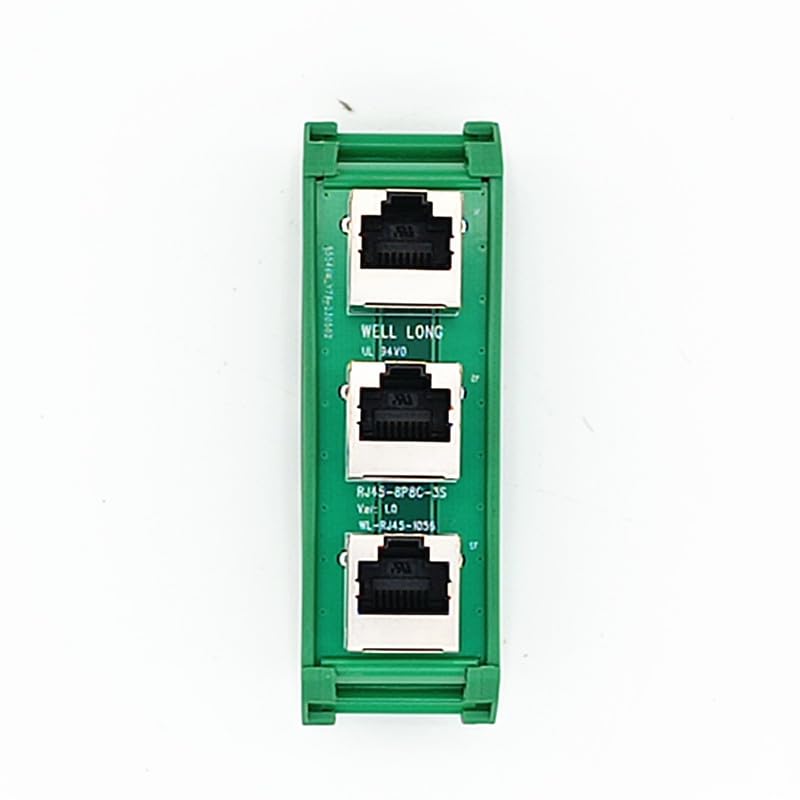

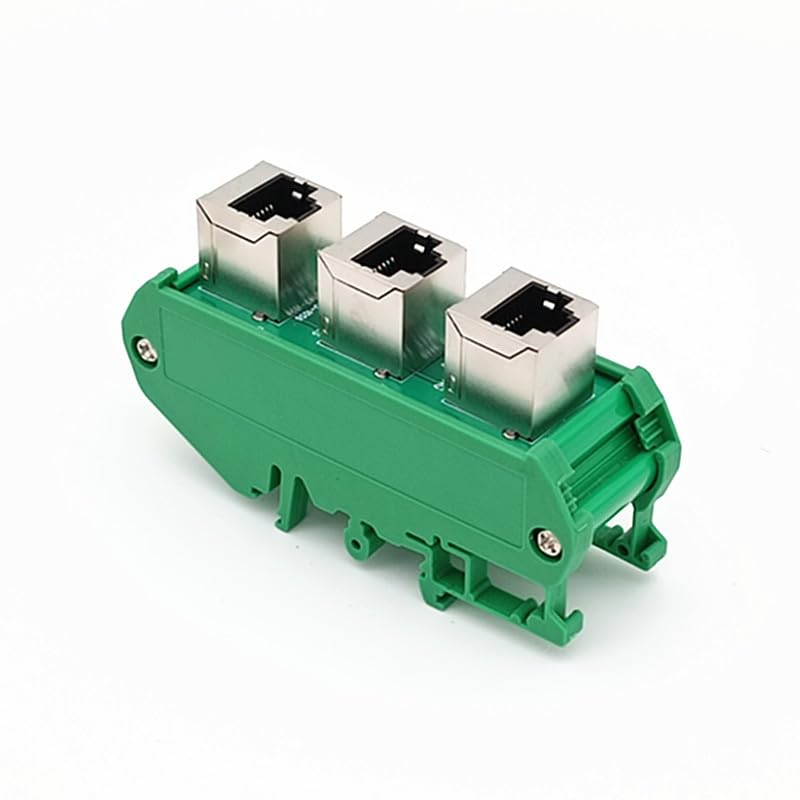

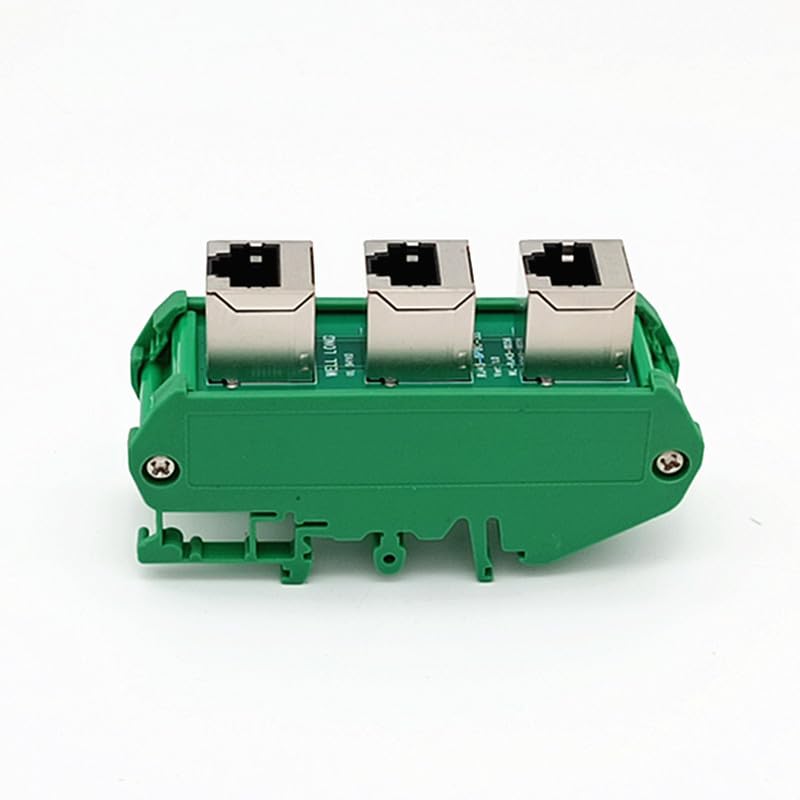

RJ50 10P10C Vertical Jack 4-Way Buss Board DIN Rail Mount Interface Module
Product details
| Management number | 247532553 | Release Date | 2026/08/16 | List Price | US$5.59 | Model Number | 247532553 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
RJ50 10P10C Vertical Jack 4-Way Buss Board ,DIN Rail Mount Interface Module. RJ50 vertical shielded 10P10C jacks. Pitch 3.81mm/0.15" screw terminal block. High quality DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail. Dimensions: 87 x 57 x 43mm(L x W x H). FR-4 fiber glass PCB, dual copper layers.100% new, never used. Rated voltage: 100V. Rated current: 0.5A / per pin. Operating Temperature: -20ºC to 50ºC Terminal block specifications:Wire range: 26 ~ 16AWG.Strip length: 5mm.Screws: M2, steel, Cr3+ Zn plated.Pin header and Cage: Brass.
- RJ50 vertical shielded 10P10C jacks.

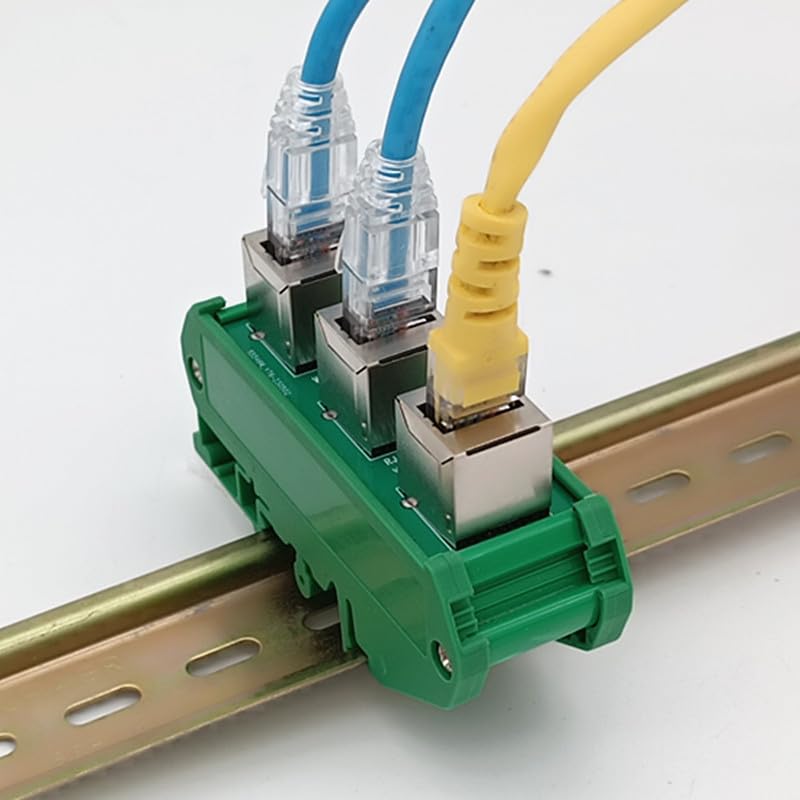

- High quality DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail.
- Pitch 3.81mm/0.15" screw terminal blockTerminal block specifications:Wire range: 26 ~ 16AWG.Strip length: 5mm.Screws: M2, steel, Cr3+ Zn plated.Pin header and Cage: Brass.

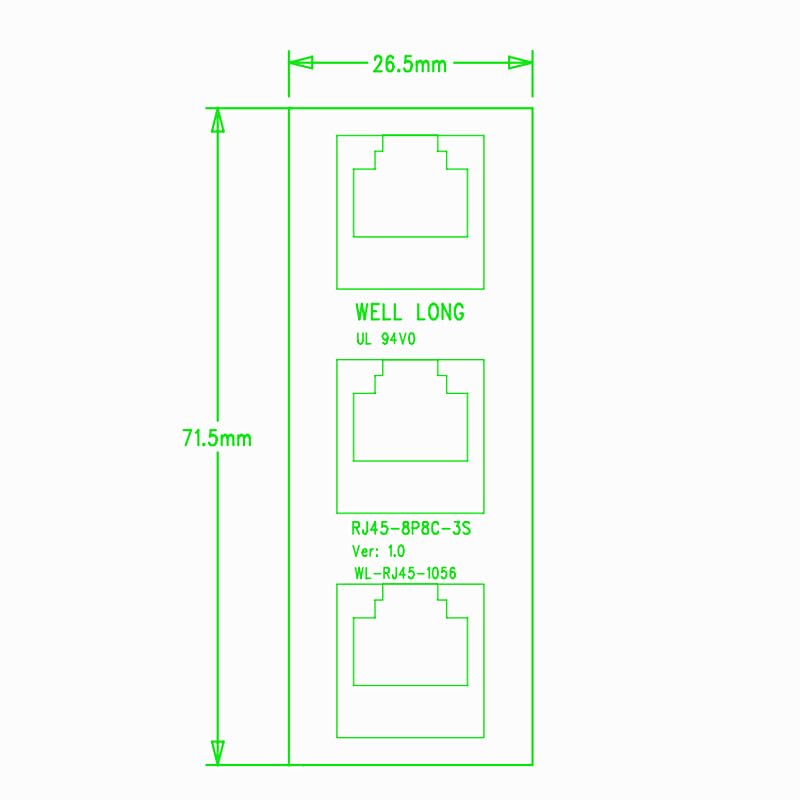

- Dimensions: 87 x 57 x 43mm(L x W x H).
- Rated voltage: 100V. Rated current: 0.5A / per pin. Operating Temperature: -20ºC to 50ºC
| ASIN | B0FJ8W18KQ |
|---|---|
| Color | Green |
| Model | RJ50-1057-A3 |
| Pitch | 0.1 inches |
| Voltage | 60 |
| Brand Name | SZ-WEEL LONG |
| Part Number | RJ50-1057-A3 |
| Manufacturer | XUHONG |
| Material Type | Plastic |
| Mounting Type | DIN Rail Mount |
| Connector Type | Idc Header |
| Current Rating | 1 A |
| Number Of Poles | 10 |
| Number of Items | 1 |
| Specification Met | UL |
| Temperature Range | -20to50 °C |
| Number Of Contacts | 10 |
| Included Components | Terminal Block, Connector, Din Rail Mount |
| Item Dimensions W x H | 7.1"W x 2.1"H |
| Upper Temperature Rating | 50 °C |
